Acumulatori hidraulici FOX

Acumulatori hidraulici FOX

Acumulatori hidraulici cu rezervor FOX / Acumulatori hidraulici cu diafragma FOX / Acumulatori hidraulici cu piston FOX / Acumulatori hidraulici otel inoxidabil

Acumulatori hidraulici cu rezervor FOX

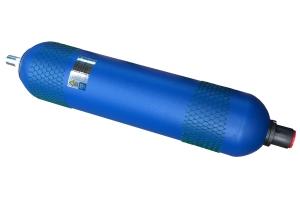

Acumulatori FOX HB

Maximum working pressure (PS): 350-480-690 bar
Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: forged steel, sand and painted
Standard nitrogen valve : ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Standard bladder: can be used with mineral
oils and non corrosive fluids
Installation: horizontal / vertical (nitrogen valve upward)

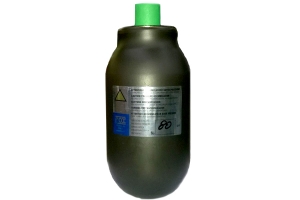

Acumulatori hidraulici FOX HTR

Maximum working pressure (PS): 250-210-150 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: made in painted carbon steel
Standard nitrogen valve : ⅝” UNF
Working temperature (TS): from -20°C to +80°C
Standard bladder: can be used with mineral oils and non corrosive fluids
Installation: horizontal / vertical (nitrogen valve upward)

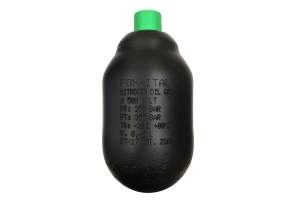

Acumulatori hidraulici FOX  H

Maximum working pressure (PS): 250-210 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: made in painted carbon steel
Standard nitrogen valve : ⅝” UNF
Constructive methodology: patented exectution with caulking, without welds
Working temperature (TS): from -20°C to +80°C
Standard bladder: can be used with mineral oils and non corrosive fluids, not replaceable
Installation: horizontal / vertical (nitrogen valve upward)

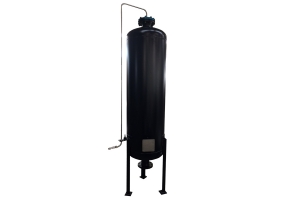

Acumulatori hidraulici FOX HG

Maximum working pressure (PS): Up to 50 bar
Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
Material: carbon steel
Working temperature (TS): -20°C / +80°C
Standard bladder: polyurethane; suitable for mineral oils, fuels and non-corrosive fluids
Standard nitrogen valve: ⅝” UNF or M28x1.5
Installation: vertical (nitrogen valve upward)

Acumulatori hidraulici cu diafragma FOX

Acumulatori cu diafragma FOX HST

Maximum working pressure (PS): 300 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: made in painted carbon steel
Standard nitrogen valve : ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Standard diaphragm: can be used with mineral oils and non corrosive fluids
Installation: horizontal / vertical (nitrogen valve upward)

Acumulatori hidraulici cu piston FOX

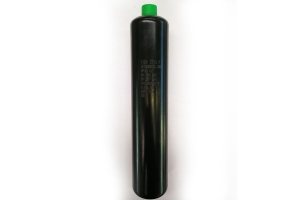

Acumulatori hidropneumatici FOX HP

Maximum working pressure (PS): 250 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Construction method: carbon steel body with caulking, without welds, not repairable/not disassemble; piston in aluminum
Standard nitrogen valve : ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Seals: standard execution in NBR
Installation: in every position

Acumulatori hidraulici otel inoxidabil

Acumulatori otel inoxidabil FOX HSTX

Maximum working pressure (PS):150-210 bar
Test pressure (PT): PSx1,43 / 1,3 / 1,5
Body: in AISI 316 L stainless steel
Diaphragm: NBR, HNBR, EPDM, FPM, HYTREL
Standard nitrogen valve: ⅝” UNF Installation: horizontal / vertical (nitrogen valve upward)



Acumulatori otel inoxidabil FOX HTRX

Maximum working pressure (PS): 30 – 120 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: in AISI 316L stainless steel
Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
Standard nitrogen valve : ⅝” UNF
Installation: horizontal / vertical (nitrogen valve upward)

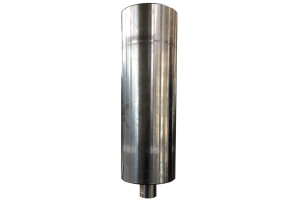

Acumulatori otel inoxidabil FOX  ACSX

Maximum working pressure (PS): 220 bar

Test pressure (PT): PS x 1,43 / 1,3 / 1,5

Body: in AISI 316L Stainless Steel

Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
Standard nitrogen valve : ⅝” UNF
Installation: horizontal / vertical (nitrogen valve upward)

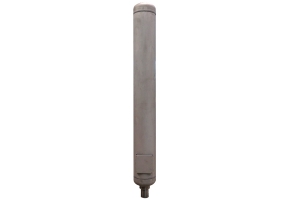

Acumulatori otel inoxidabil FOX HBX

Maximum working pressure (PS): 50-450 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: in AISI 316L stainless steel
Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
Standard nitrogen valve : ⅝” UNF
nstallation: horizontal / vertical (nitrogen valve upward)
