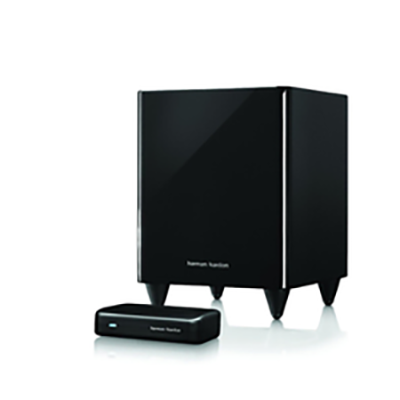

Subwoofer wireless Harman Kardon HKTS 220SUB

8″ (200mm), down-firing low-frequency transducer

Built-in 200-watt amplifier

Wireless operation

Sealed enclosure

Down-firing transducer

Adjustable crossover frequency and phase control

LFE and line-level inputs

Harman Kardon sound: A legacy of achievement

8″ (200mm), down-firing low-frequency transducer

The HKTS 220SUB features an 8-inch (200-millimeter), down-firing cone that produces powerful bass with such low distortion levels that individual sounds remain both accurate and articulate, even at sustained low frequencies. Such bass energy transforms surround sound from just a run-of-the-mill listening experience into a robust and seemingly tangible environment.

Built-in 200-watt amplifier

A 200-watt amplifier lets you play the HKTS 220SUB subwoofer at body-quaking levels, but you won’t suffer any room-vibrating reverb or excessive heat output. What’s more, a built-in limiter prevents distortion that can result from sudden peaks, taking your sound experience from just impressive to fully immersive.

Wireless operation

The HKTS 220SUB gives you a choice of four user-selectable wireless channels. These options ensure easy-to-implement operation – and the lack of wires means reduces the clutter in your listening environment.

Sealed enclosure

The HKTS 220SUB’s sealed enclosure acts to control the woofer cone’s motion, thereby providing consistent, reliable sound that remains rich and smooth even at the deepest of frequencies.

Down-firing transducer

Unlike conventional, front-firing subwoofers, the HKTS 220SUB fires downward, interacting with the floor for enhanced bass response. Volume, phase and bass-boost controls make it easy for you to synchronize bass output with satellite speakers and fine-tune the system’s performance to match your room acoustics and personal preferences.

Adjustable crossover frequency and phase control

A phase switch ensures that the HKTS 220SUB transducer’s action moves in sync with your other speakers. This feature ensures that low frequencies blend seamlessly with the sound coming from the higher-frequency speakers, regardless of where you place the subwoofer in your home theater. Furthermore, an adjustable crossover-frequency control lets you optimize the subwoofer for a variety of speaker choices.

LFE and line-level inputs

The HKTS 220SUB offers a choice of LFE or line-level inputs to let you use or bypass the subwoofer’s internal crossover circuits for bass-boosting versatility. This option provides greater flexibility in how you use the HKTS 220SUB while ensuring noise-free connections to virtually any type of audio/video amplifier.

Harman Kardon sound: A legacy of achievement

Exemplifying the balance among high style, modern design and audio ingenuity, the HKTS 220SUB subwoofer embodies the spirit of Harman Kardon innovation, a legacy that discerning audio enthusiasts have revered for almost 60 years. Harman Kardon engineers have consistently advanced the science of sound, developing products that are dedicated to quality, durability and, most importantly, generating rave reviews from audiophiles.

What’s in the box?

1 HKTS 220SUB subwoofer

1 wireless transmitter for subwoofer

1 power supply for subwoofer transmitter

1 AC cable for subwoofer transmitter power supply (varies with region)

1 23′ (6m) RCA LFE/subwoofer cable

1 23′ (6m) mini-jack trigger cable for subwoofer

Owner’s manual



Subwoofer wireless

Low-Frequency Transducer 8″ (200mm) down-firing cone

Amplifier Power (RMS) 200 W

Frequency Response 45Hz – 200Hz (–6dB)

Controls volume, phase, bass boost

Connections LFE (RCA-type); left and right line-level (RCA-type)

External Trigger Input/ Voltage 3 – 30 volts, AC or DC

Power Requirement 120V AC, 60Hz (USA); 220V – 240V AC, 50Hz/60Hz (EU)

Dimensions (H x W x D – Metric/English) (H x W x D): 13-29/32″ x 10-1/2″ x 10-1/2″ (353mm x 267mm x 267mm)

Weight (Metric/English) 19.8 lbs (9kg)
