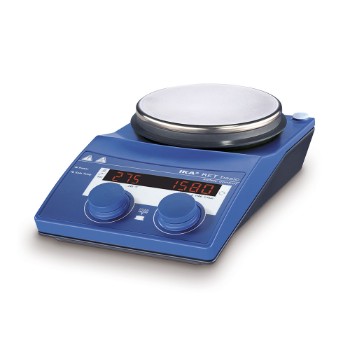

Agitator magnetic IKA RET basic

Date Tehnice

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	20 l
Motor rating output	9 W
Direction of rotation	right
Speed display set-value	LED
Speed display actual-value	LED
Speed control	Turning knob
Speed range	50 – 1700 rpm
Setting accuracy speed	1 rpm
Stirring bar length	20 – 80 mm
Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h)	15 +K
Heat output	600 W
Temperature display set-value	LED
Temperature display actual-value	LED
Temperature unit	°C
Heating temperature range	Room temp. + device self heating – 340 °C
Heat control	Turning knob
Temperature setting range	0 – 340 °C
Heating rate heating plate	7 K/min
Temperature setting resolution of heating plate	1 K
Connection for ext. temperature sensor	PT1000
Temperature setting resolution of medium	1 K
Adjustable safety circuit	50 – 360 °C
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	Ø 135 mm
Sensor in medium detection (Error 5)	yes
Dimensions (W x H x D)	160 x 95 x 270 mm
Weight	2.5 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 42
Voltage	220 – 230 / 115 / 100 V
Frequency	50/60 Hz
Power input	630 W
