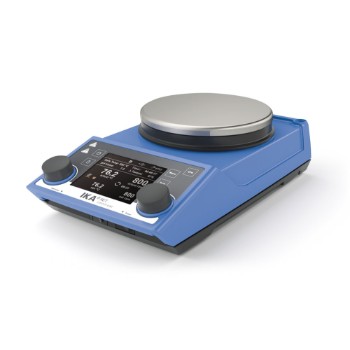

Agitator magnetic IKA RET control-visc

Date Tehnice

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Motor rating output 9 W
Direction of rotation right
Speed display set-value TFT
Speed display actual-value TFT
Speed control Turning knob
Speed range 50 – 1700 rpm
Setting accuracy speed 10 rpm
Stirring bar length 20 – 80 mm
Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h) 28 +K
Heat output 600 W
Temperature display set-value TFT
Temperature display actual-value TFT
Temperature unit °C / °F
Heating temperature range Room temp. + device self heating – 340 °C
Heat control Turning knob
Temperature setting range 0 – 340 °C
Temperature setting resolution of heating plate 0.1 K
Connection for ext. temperature sensor PT100/PT1000 (dual sensor)
Characteristics in the medium with temperature sensor 1l M50 Oil at H1500
Temperature medium max. 270 °C
Heating rate medium 7 K/min
Temperature setting resolution of medium 0.1 K
Adjustable safety circuit 50 – 380 °C
Set-up plate material stainless steel 1.4301
Set-up plate dimensions Ø 135 mm
Intermittend mode yes
Viscosity trend measurement yes
Break detection stirring bar yes
Timer yes
pH measurement yes
Graph function yes
Programs yes
Sensor in medium detection (Error 5) yes
Weighing function yes
Weighing range 10-5000 g
Weighing accuracy ±(0.3%+2) g
Load capacity weighing function max. 5 kg
Dimensions (W x H x D) 160 x 85 x 270 mm
Weight 2.7 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 42
RS 232 interface yes
USB interface yes
Voltage 220 – 240 / 115 / 100 V
Frequency 50/60 Hz
Power input 650 W
