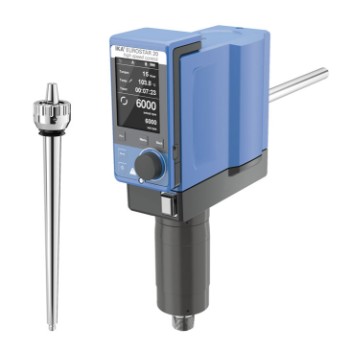

Agitator mecanic inversat IKA EUROSTAR 20 high speed control

Date tehnice

Stirring quantity max. per stirring position (H2O)	20 l
Motor rating input	176 W
Motor rating output	125 W
Motor principle	Brushless DC
Speed display	TFT
Speed range	0/150 – 6000 rpm
Intermittent operation	yes
Viscosity max.	10000 mPas
Output max. at stirring shaft	125 W
Permissible ON time	100 %
Torque max. at stirring shaft	20 Ncm
Speed control	stepless
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	special output shaft
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Fastening on stand	extension arm
Extension arm diameter	16 mm
Extension arm length	220 mm
Torque display	yes
Nominal torque	0.2 Nm
Torque measurement	trend
deviation of torque measurement I	6 ±Ncm
Timer	yes
Timer display	TFT
Time setting range	1 – 6000 min
Temperature measuring range	-10 – +350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
housing material	alu-cast coating / thermoplastic polymer
communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	86 x 325 x 230 mm
Weight	4.7 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
USB interface	yes
RS 232 interface	yes
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	176 W
