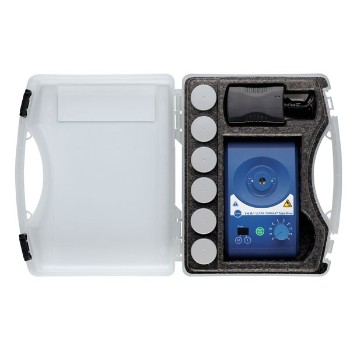

Dispersor IKA ULTRA-TURRAX® Tube Drive Workstation

Date tehnice

Motor rating input	20 W
Motor rating output	17 W
Viscosity max.	5000 mPas
Speed range	300 – 6000 rpm
Speed deviation	10 %
Speed display	scale
Speed control	stepless
Noise without element	50 dB(A)
Process type	batch
Dimensions (W x H x D)	100 x 40 x 160 mm
Weight	0.75 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	20 W
DC Voltage	24 V=
Current consumption	800 mA
