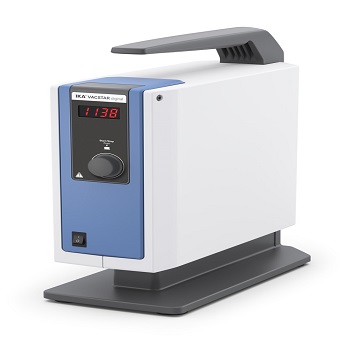

Controller IKA VACSTAR digital

Date Tehnice

Pump rate max. (50/60Hz) 1.32 m³/h
Pump rate max. (50/60Hz) 22 l/min
Final pressure without gas ballast 2 mbar
Suction levels 4
Cylinder 4
Connection diameter suction side 8 mm
Connection diameter pressure side 8 mm
Input pressure 2 – 1030 mbar
Two-point control yes
Analog speed vacuum control yes
Speed control Turning knob
Speed range 285 – 1200 rpm
Display LED
Noise at low. pressure 54 dB(A)
Material in contact with medium Al2O3; PTFE; FFPM; PPS; NBR
housing material alu-cast coating / thermoplastic polymer
Mode automatic yes
Mode manual yes
Mode pump % yes
Mode program yes
Dimensions (W x H x D) 150 x 375 x 370 mm
Weight 11.5 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 100 – 240 V
Frequency 50/60 Hz
Power input 130 W
Power input standby 3 W
